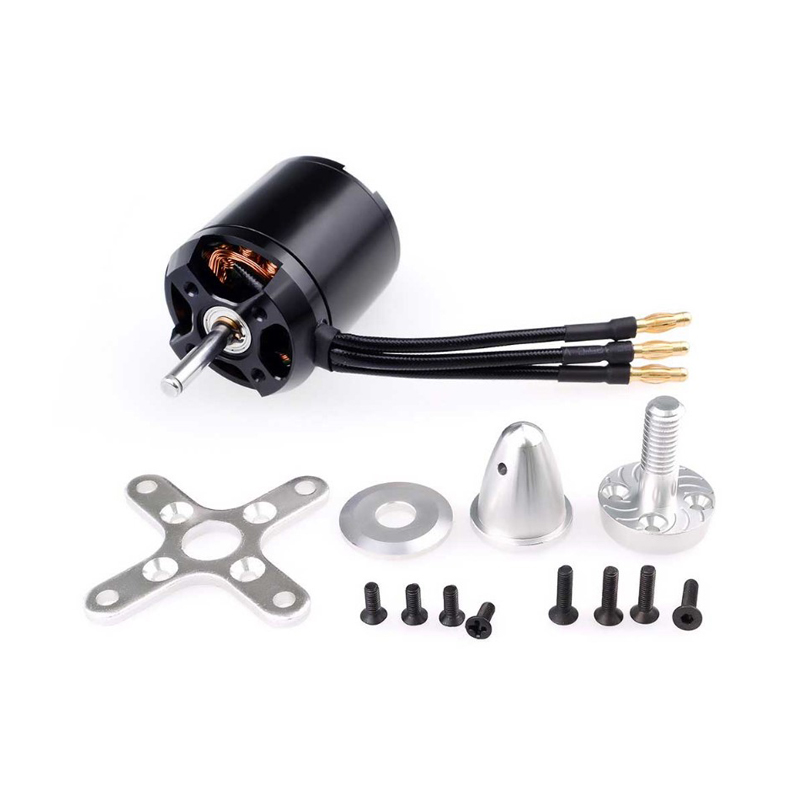

Driven by rapid upgrading of smart home, automotive electronic control, precision home appliance and micro-device industries, market demand for small motors and micro drive motors keeps surging. Such motors feature intricate structures and tiny components including stators, rotors, coils, terminals, shrapnels and housings, imposing stringent standards on assembly clearance, winding uniformity, pressing precision and finished product consistency. Traditional manual assembly and semi-automatic auxiliary production modes can no longer meet current mass-production requirements for high precision and stable performance.

Conventional small motor manufacturing is plagued by persistent process pain points. Manual assembly results in frequent defects such as uneven coil winding, offset terminal crimping and inconsistent assembly gaps due to varying operator proficiency and working status, which further cause motor stalling, excessive noise and unstable performance. Besides, inconsistent manual cycle time and slow model changeover lead to insufficient production line flexibility and fluctuating yield when handling multi-model, small-batch orders, bringing high material waste and rework costs that restrict enterprises’ capacity and quality improvement in the long run.

To tackle technical difficulties in precision assembly of small motors, Dongguan Youan Precision Machinery leverages years of experience in non-standard automation customization and specializes in assembly and inspection of micro motor components. We develop tailored intelligent automatic solutions covering full production procedures of small motors, helping manufacturers eliminate reliance on manual labor and realize standardized, precise and flexible production line upgrading.

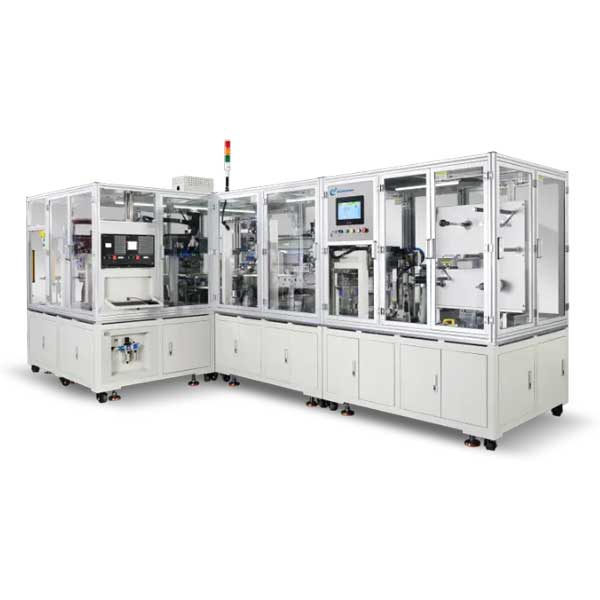

Unlike general automated equipment, Youan Precision’s small motor automation solutions are fully customized based on product structure, process flow, precision standards and workshop conditions. The machines cover full-cycle integrated closed-loop production including coil winding, terminal cutting & insertion, stator assembly, rotor pressing, component fitting, visual inspection and electrical testing & sorting, effectively resolving issues of scattered manual processes, cumbersome material transfer and insufficient precision.

For core precision assembly processes, the whole system adopts servo precise control and visual positioning technology to deliver high assembly accuracy. Winding turns, pressing stroke and assembly clearance are fully digitally controllable to eliminate human errors and maintain highly consistent assembly parameters across all motors. Equipped with on-line intelligent inspection modules, the equipment simultaneously conducts continuity tests, insulation detection and appearance screening to catch common motor defects such as insufficient pressing, missing parts, defective coils and offset terminals, strictly controlling product quality at the source and greatly improving finished product stability and service life.

Built with modular flexible design to fit the industry’s characteristics of numerous models, fast iteration and flexible batch sizes, the equipment allows rapid fixture replacement. The system supports storage and one-click recall of multiple sets of process parameters for quick production switch between different micro motor specifications, drastically shortening changeover and commissioning time, boosting equipment reusability and avoiding repeated capital expenditure on extra machines, perfectly matching modern multi-variety, small-batch and fast-upgrade production modes.

During mass production, automated lines support long hours of continuous stable operation with compact process connection and balanced takt time, completely eliminating unstable output and delayed delivery caused by manual labor. Less human intervention, lower defect rates and reduced material consumption cut labor, rework and material costs comprehensively and bring remarkable overall production efficiency improvement.

Centered on customers’ actual production demands, Youan Precision never adopts universal equipment templates. We provide one-stop non-standard automation customization services covering preliminary process analysis, solution design, equipment R&D & manufacturing, on-site installation & commissioning, staff training and post-operation maintenance & upgrade. Supported by solid precision assembly craftsmanship, mature visual inspection technology and abundant industrial project experience, we keep delivering well-matched, stable and cost-effective intelligent solutions for small motor manufacturers to advance smart manufacturing transformation.
